Electric Stacker CDDH-2035
- Commodity name： Electric Stacker CDDH-2035
Phone:
+86 199 3194 8292
- Product Description
- 参数
-
Electric Stacker
1. Power and environmental protection
As a fully electric device, the fully electric pallet stacker is powered by electricity, abandoning the traditional fuel power. It does not produce exhaust gas during operation, which is both environmentally friendly and meets the requirements of modern warehousing for a clean environment. Its power system provides a stable and efficient power source to ensure that the equipment can run smoothly when handling pallet goods without insufficient power.
2. Flexible and precise operation
Excellent in operational flexibility. The fully electric pallet stacker is equipped with advanced control devices, and the operator can accurately control the forward, backward, turning and lifting and lowering of the fork through simple operations. This precision allows it to shuttle freely in narrow warehouse aisles and accurately place pallet goods in designated locations on multi-layer shelves. Its minimum turning radius is very small, and it can efficiently complete the stacking task of goods even in a warehouse layout with limited space.
3. Efficient cargo handling capacity
It has different load and lifting height specifications to meet diverse storage needs. Whether it is lighter small pallet goods or heavier large pallet goods, it can easily cope with them. In terms of lifting speed, the goods can be lifted to the target height quickly, effectively improving the storage and retrieval efficiency of the goods. Moreover, the design of the fork can adapt well to various standard pallets to ensure the stable forking and stacking of goods.
4. Safety and maintenance features
In terms of safety, it is equipped with overload protection devices, cargo slip protection devices and emergency brake buttons. Overload protection can prevent equipment from being damaged due to overload and ensure operational safety. In terms of maintenance, due to the relatively simple structure of the electric system, daily maintenance mainly focuses on the inspection and maintenance of batteries, motors and some key components, with low maintenance costs and easy operation. With its advantages in efficiency, flexibility and safety, the fully electric pallet stacker has become a powerful assistant for modern warehousing to improve operational efficiency.
Intelligent Operation Handle
Self-developed control system, simple operation, intelligent and precise
High Precision Hydraulic Cylinder
Thicker chrome plating, higher precision, imported oil seals, no oil leakage valve design, no more worries about oil leakage.

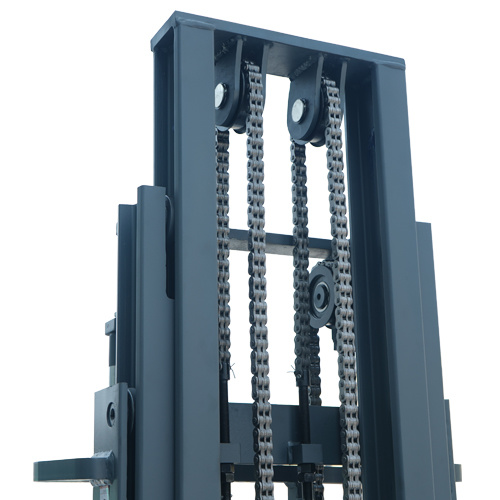

Steel Gantry, Forklift Chains
Adopting special plate chain for forklift trucks, profile steel gantry, greater carrying capacity
Maintenance-free DC Drive
Low maintenance costs, energy efficient, stable speed regulation
Product Specifications
Model CDDH-2035 Capacity 4,409 lbs. (2,000 kg) Power Source Lithium-ion Battery / Lead-acid Battery Battery Life Up to 5-7 hours per full charge Charging Time 2-4 hours (quick charge option available) Maximum Lift Height 137.8 inches (350 cm) (customizable) Fork Length 45.28 inches (115 cm) standard (customizable) Travel Speed Up to 2.8 mph (4.5 kph) Turning Radius 55.12 inches (140 cm) Tight, maneuverable radius for narrow aisles Tire Type PU Dimensions (LxWxH) 76.77” x 32.28” x 87.8” (195 cm x 82 cm x 223 cm)
Weight Approximately 1,433 lbs. (650 kg) Safety Features Electromagnetic brake, emergency power-off switch, reverse brake button -
-
CHARACTERISTICS
- Model Code CDDH 2035
- Capacity 2000 KG
- Operator Type Standing type
- Load Center 600 mm
- Free Lifting Height 190 mm
- Lowered Fork Height 2230 mm
- Max. Lifting Height 3500 mm
- Weight 650 KG
- Overall Length 1950 mm
- Overall Width 820 mm
- Fork Dimensions 60*170*1150 mm
- Ground Clearance 28 mm
- Turning Radius 1400 mm
- Travel Speed 4.5 km/h
- Lift Speed 0.23 m/s
- Gradeability 8%
- Drive Motor 1.0 kw
- Lift Motor 2.2 kw
- Battery Voltage 48V/32Ah
- Overall Height Fork Lowered
-
