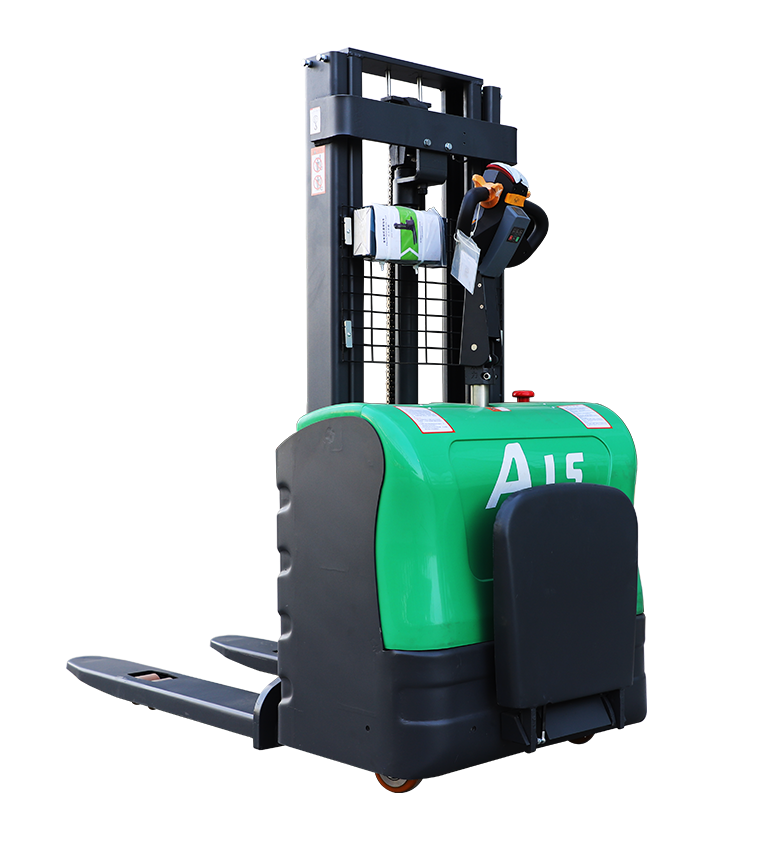

Electric Stacker CDDH-1530W
- Commodity name： Electric Stacker CDDH-1530W
- Product Description
- 参数
-
Electric Stacker
Intelligent Operation Handle
Self-developed control system, simple operation, intelligent and precise
High Precision Hydraulic Cylinder
Thicker chrome plating, higher precision, imported oil seals, no oil leakage valve design, no more worries about oil leakage.
Steel Gantry, Forklift Chains
Adopting special plate chain for forklift trucks, profile steel gantry, greater carrying capacity
Maintenance-free DC Drive
Low maintenance costs, energy efficient, stable speed regulation
Product Specifications
Model CDDH-1530 Capacity 3,307 lbs. (1,500 kg) Power Source Lithium-ion Battery / Lead-acid Battery Battery Life Up to 5-7 hours per full charge Charging Time 2-4 hours (quick charge option available) Maximum Lift Height 118 inches (300 cm) (customizable) Fork Length 45.28 inches (115 cm) standard (customizable) Travel Speed Up to 2.8 mph (4.5 kph) Turning Radius 55.12 inches (140 cm) Tight, maneuverable radius for narrow aisles Tire Type PU Dimensions (LxWxH) 72.83” x 62.99” x 78.74” (185 cm x 160 cm x 200 cm)
Weight Approximately 1,212 lbs. (550 kg) Safety Features Electromagnetic brake, emergency power-off switch, reverse brake button Electric forklift stacker is widely used in warehouses, logistics centers, factories, and retail distribution systems for efficient pallet lifting and stacking operations. It replaces manual handling with electric power, improving productivity while reducing labor intensity and operational risks in daily warehouse management.
Compared with traditional manual stackers, electric forklift stackers offer smoother lifting, better control, and higher efficiency. They are designed with compact structure, allowing easy movement in narrow aisles and tight storage spaces, making them ideal for modern warehouse environments with high storage density.
One of the key advantages is improved working efficiency. Electric power lifting reduces physical effort and allows operators to handle heavier loads with precision and stability. This significantly increases warehouse throughput and reduces operational fatigue.
In real applications, logistics companies use electric forklift stackers to speed up pallet handling and reduce loading time, while manufacturing plants use them to improve internal material flow and storage organization.
Electric forklift stackers solve major pain points such as low manual efficiency, high labor cost, unsafe lifting operations, and limited handling capacity. As a result, they have become essential equipment in modern smart warehousing systems.
-
-
CHARACTERISTICS
- Model Code CDDH 1530W
- Capacity 1500 kg
- Operator Type Standing type
- Load Center 600 mm
- Free Lifting Height 190 mm
- Lowered Fork Height 2000 mm
- Max. Lifting Height 3000 mm
- Weight 600 kg
- Overall Length 1950 mm
- Overall Width 1600 mm
- Fork Dimensions 60*170*1150 mm
- Ground Clearance 20 mm
- Turning Radius
- Travel Speed 4.5 km/h
- Lift Speed 0.23 m/s
- Gradeability 8 %
- Drive Motor 0.8 kw
- Lift Motor 2.2 kw
- Battery Voltage 48V / 32Ah
- Overall Height Fork Lowered
-
