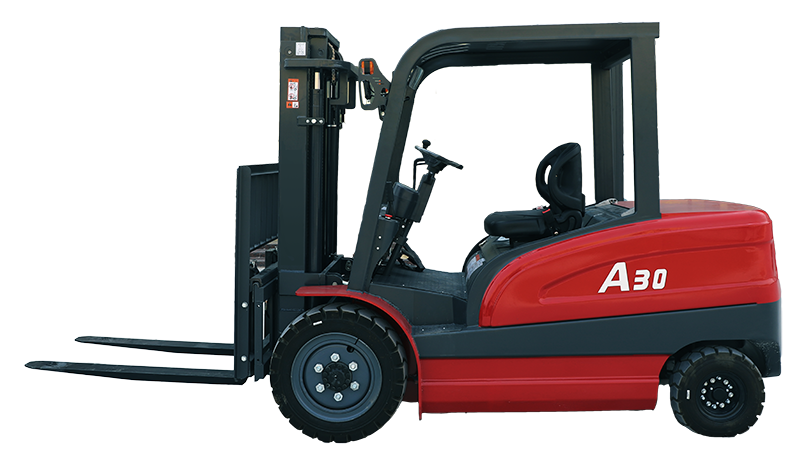

Electric Forklift CPDB-30
- Commodity name： Electric Forklift CPDB-30
Phone:
+86 199 3194 8292
- Product Description
- 参数
-
Electric Forklift
Zero-Emission Powertrain
Equipped with a state-of-the-art lithium-ion battery, our forklift eliminates emissions and reduces your carbon footprint.
Advanced Operator Interface
The intuitive touchscreen interface offers real-time diagnostics, enhancing operator efficiency and safety.
Ergonomic Design for Operator Comfort
The ergonomic cab design ensures operator comfort during extended shifts.
High-Capacity Lifting and Precision Control
Equipped with a sturdy lifting device, the CPDB Series Electric Forklift combines strength with precision control.
Product Introduction:
This new Balanced heavy Forklift provides operators with exceptional lifting capability through its 3000kg capacity and 3000mm maximum lifting height that handles substantial loads at various heights. The electric power system featuring 9.5kw drive motor and 9kw lift motor ensures smooth operation, while the 60V/280Ah battery delivers sustained power for extended shifts. Operators benefit from the comfortable seat-type design and intuitive controls that reduce fatigue during long operations, along with the optimized 2900mm turning radius that enhances maneuverability in confined warehouse spaces.
Engineered for stability and durability, this quality Balanced heavy Forklift features a balanced design with 4500kg weight distribution that ensures secure load handling at full capacity. The generous 500mm load center and practical free lifting height of 115mm provide versatile handling options for various pallet types. As a new Balanced heavy Forklift, it represents advanced material handling technology that delivers the trusted performance of a quality Balanced heavy Forklift while incorporating electric efficiency and operator-friendly features that enhance productivity in industrial environments.
Product Specifications
Model CPDB-30 Capacity 6,614 lbs. (3,000 kg) Power Source Lithium-ion Battery / Lead-acid Battery Battery Life Up to 5-7 hours per full charge Charging Time 2-4 hours (quick charge option available) Maximum Lift Height 118.1 inches (300 cm) (customizable) Fork Length 42.13 inches (107 cm) standard (customizable) Travel Speed Up to 7.46 mph (12 kph) Turning Radius 108.3 inches (275 cm) Tight, maneuverable radius for narrow aisles Tire Type Solid pneumatic for stability and durability Dimensions (LxWxH) 112.2” x 48.03” x 82.68” (285 cm x 122 cm x 210 cm)
Weight Approximately 9,259 lbs. (4,200 kg) Safety Features Emergency stop button, anti-rollback system, operator restraint, and more -
-
CHARACTERISTICS
- Model Code CPDB 30
- Capacity 3000 kg
- Operator Type Seat type
- Load Center 500 mm
- Free Lifting Height 115 mm
- Lowered Fork Height 2025 mm
- Max. Lifting Height 3000 mm
- Weight 4500 kg
- Overall Length 3920 mm
- Overall Width 1220 mm
- Fork Dimensions
- Ground Clearance 130 mm
- Turning Radius 2900 mm
- Travel Speed 12 km/h
- Lift Speed 0.16 m/s
- Gradeability
- Drive Motor 9.5 kw
- Lift Motor 9 kw
- Battery Voltage 60V / 280Ah
- Overall Height Fork Lowered
-
